With selectable gain and loading, you will be able to tailor StudioPhono to match nearly any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit’s underside to quickly make adjustments without the need for any tools.

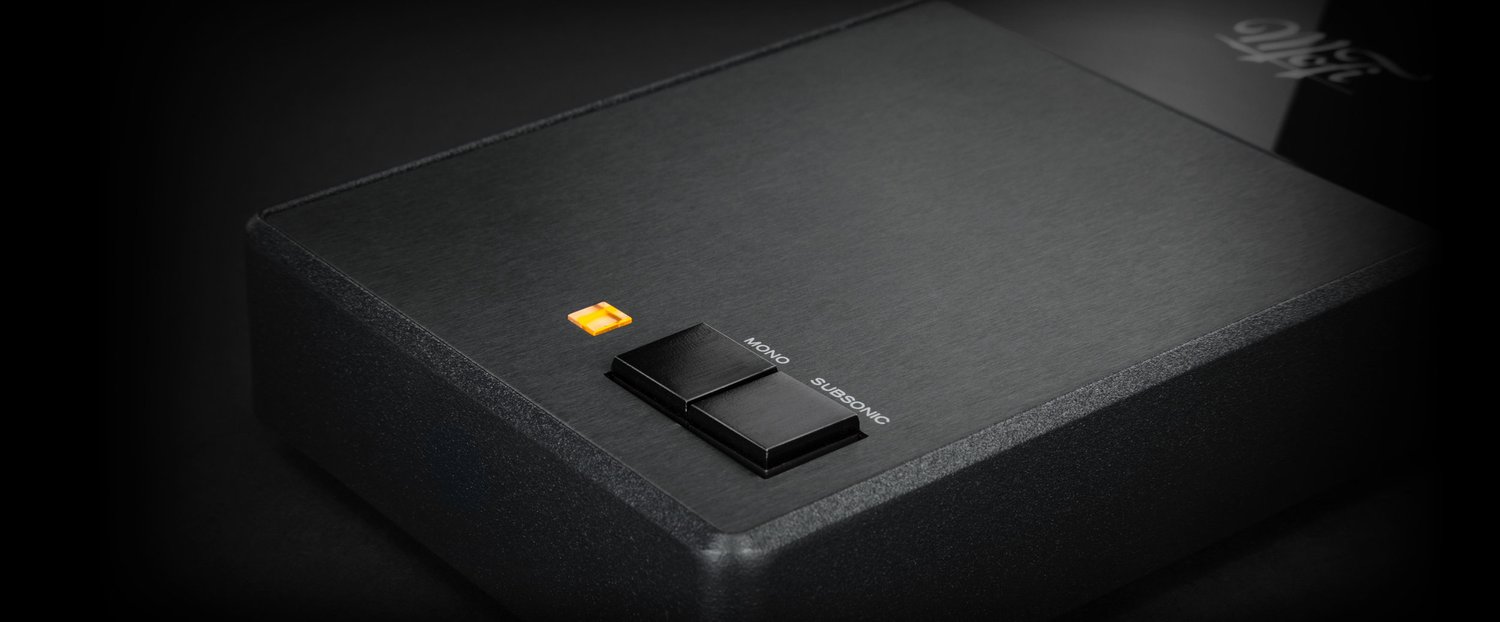

MONO AND SUBSONIC FILTER MODE
Two selectable toggle buttons on the top of the unit can engage Mono or Subsonic filter mode. If you're a fan of mono recordings, vintage or reissues like the Beatles in Mono box set or the Mobile Fidelity Sound Lab Bob Dylan Series, the Mono mode will come as a revelation. It will improve image stability and generate richer tone.
SPECIFICATIONS
Gain
Adjustable from 40dB - 66dB
THD
< .01% (MM) / < .012% (MC)
Load Impedance (MM)
47,000 Ohms
Load Impedance (MC)
75, 100, 500, 1k, 10k, 47k Ohms
Input Capacitance
100pF
FEATURES
Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB
